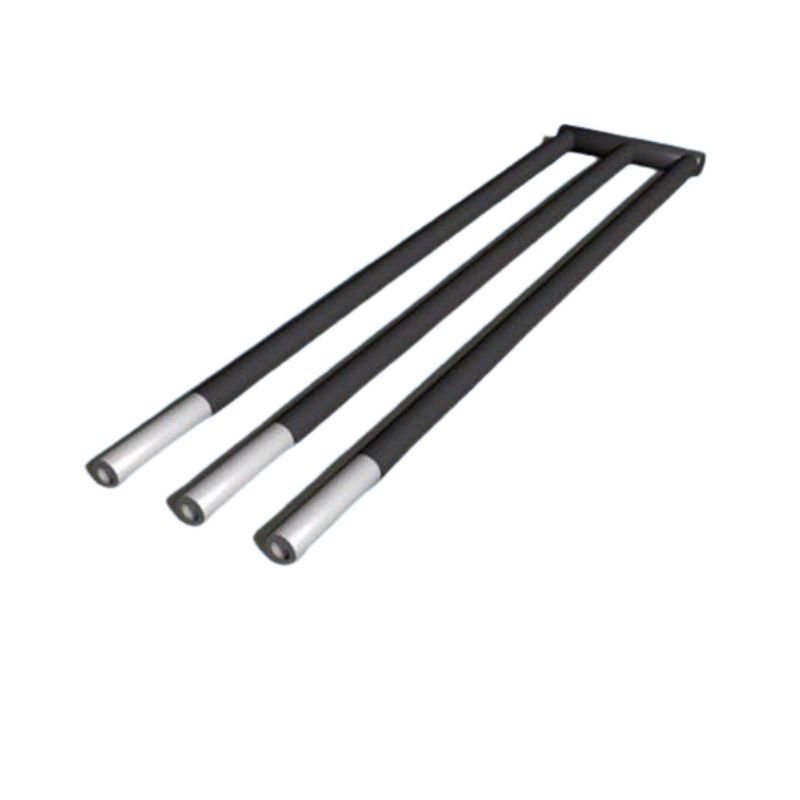

W-Type Silicon Carbide Heating Element High Temp Industrial Heater

Product Overview

The W-Type Silicon Carbide Heating Element is a high-performance industrial heating solution designed for demanding high-temperature applications. Featuring a distinctive W-shaped configuration, this silicon carbide (SiC) heating rod delivers exceptional durability, rapid heating, and efficient energy use. Its robust design ensures long-lasting operation even under extreme thermal cycling, making it ideal for processes requiring consistent and reliable heat.

Core benefits include:

• Superior thermal shock resistance and oxidation stability
• Enhanced heating uniformity due to the W-shaped layout
• Extended service life compared to conventional MoSi2 alternatives
• Optimized for three-phase power systems for balanced performance
• Reduced maintenance and downtime, boosting overall operational efficiency

Engineered for industries such as glass manufacturing, ceramics firing, and metal heat treatment, the W-Type SiC heating element offers a reliable, cost-effective heat source that supports continuous production while reducing energy consumption.

Explore how Gotrays’ W-type silicon carbide heater can elevate your industrial heating processes with unmatched longevity and performance.

Technical Specifications



Our W-Type Silicon Carbide Heating Element is made from high-purity recrystallized alpha silicon carbide (SiC), known for its excellent high-temperature strength and oxidation resistance. The unique W-shaped design provides uniform heat distribution and increased surface area for efficient heating.

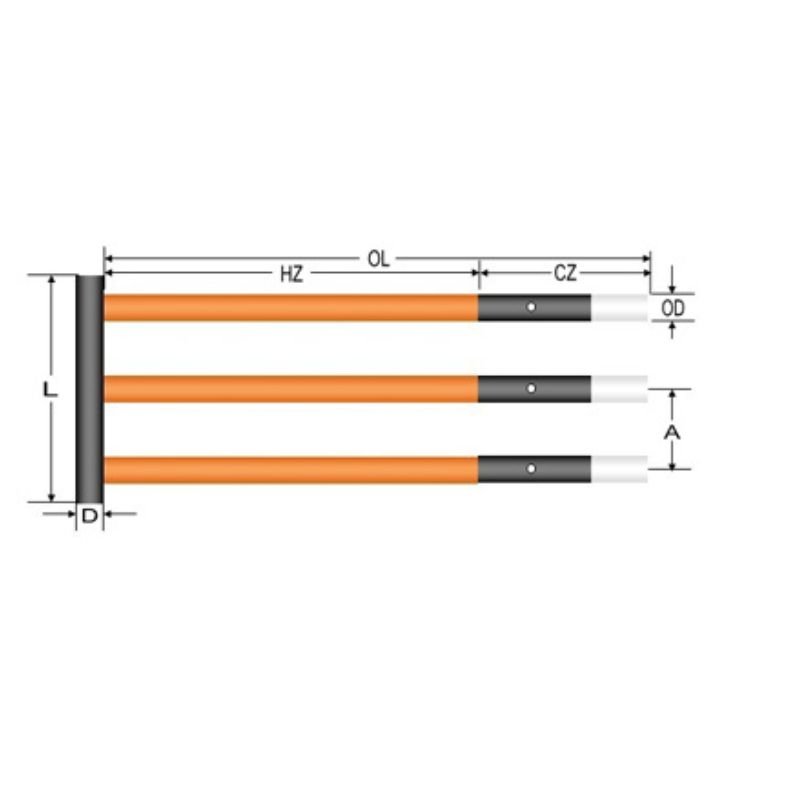

Material and Dimensions

• Material: Recrystallized alpha SiC
• Shape: W-type, three-phase configuration
• Standard length: 12 to 36 inches (custom sizes available)
• Diameter: Typically 10 to 15 mm depending on wattage requirements

Electrical Properties

• Operating voltage: 120V to 480V options available
• Watt density: 20 to 50 W/in² for optimal performance
• Resistance tolerance: ±5% to ensure stable heating
• Suitable for both single-phase and three-phase power supplies

Performance and Certifications

• Maximum operating temperature: Up to 1650°F (900°C) continuous use
• Fast heat-up time with excellent thermal stability
• Certified to meet industry standards including ASTM and ISO quality controls
• Proven lifespan exceeding 10,000 hours under proper conditions

These specs make it an ideal choice for industrial heating applications requiring durable, efficient, and high-temperature silicon carbide rods.

Features and Advantages of W-Type Silicon Carbide Heating Element

The W-type SiC heating element stands out for its unique W-shaped design that boosts heating efficiency. This shape helps the element deliver even heat distribution, reducing temperature variance in your furnace or kiln. Because of this, you get consistent results every time, which is critical for industries like ceramics and glass manufacturing.

Built from high-quality recrystallized alpha silicon carbide, these heating rods offer excellent durability and long service life. They resist oxidation and thermal shock better than many other heating elements, meaning fewer replacements and less downtime. The robust construction also means they can handle extreme high temperatures reliably, making them a strong choice if you need a stable heat source for demanding industrial processes.

Other notable advantages include:

• Faster heat-up and cool-down cycles thanks to efficient thermal conductivity
• Compatibility with three-phase silicon carbide heater systems for balanced power usage
• Lower energy consumption compared to traditional MoSi2 alternatives
• Resistance to chemical corrosion, perfect for harsh work environments

Overall, the W-configuration combined with the premium SiC material gives you a heating element that is both powerful and built to last, saving you money and hassle in the long run.

Applications of W-Type Silicon Carbide Heating Element

The W-type silicon carbide heating element shines in high-temperature industrial settings where reliability and efficiency are key. Its primary use is in float glass furnace heating, providing consistent heat to keep production smooth and energy costs low. You’ll also find it in ceramics kilns, where the element handles extreme temperatures without degrading quickly.

Secondary uses include:

• Heat treating metal parts for strength and durability
• Serving as a replacement for W-type MoSi2 elements in oxidation-prone environments
• Industrial ovens that require stable, high-heat elements
• Chemical processing equipment needing oxidation-resistant components

A recent case study with a U.S. glass manufacturer showed how switching to Gotrays W-type SiC heating rods cut downtime by 20% thanks to superior lifespan and easy maintenance. This meant less production halt and better overall output for their busy plant.

If your business depends on long-lasting, high-temp heating, these elements are worth a close look.

Installation and Maintenance Guide for W-type Silicon Carbide Heating Element

Installing your W-type SiC heating element properly ensures long life and peak performance. Here’s a simple step-by-step guide to get you started:

Installation Steps

• Mounting: Secure the W-shaped SiC heating rod firmly in the furnace or kiln using insulated clamps. Make sure the element is well-supported to avoid damage from vibrations or movement.
• Wiring: Connect the element leads to your power supply following the wiring diagram provided. For three-phase silicon carbide heaters, ensure correct phase connections to balance the load. Use heat-resistant cables and secure all joints.
• Startup: Power up gradually. Avoid sudden temperature spikes to prevent thermal shock. Increase heat in small increments until reaching your target temperature.
• Initial Check: Monitor the element for any unusual noises, sparks, or uneven heating during first use.

Maintenance Tips

• Regular Inspection: Look for cracks, discoloration, or wear on the silicon carbide tube, signs that could indicate aging or imminent failure.
• Cleaning: Keep the heating element free from dust, debris, and chemical deposits. Use a soft, dry cloth; avoid liquids or harsh chemicals that can damage the oxidation-resistant surface.
• Aging Management: Track your element’s operating hours. W-type SiC rods have a long lifespan but will degrade gradually—plan replacements ahead to avoid downtime.
• Troubleshooting Common Issues
  • Uneven heating: Check wiring connections and clamp tightness.
  • Element failure: Inspect for physical damage or overvoltage situations.
  • Short circuits: Confirm no insulation damage and proper grounding.

Safety Reminders

• Always disconnect power before handling or servicing the heating element.
• Use proper personal protective equipment (PPE) such as heat-resistant gloves.
• Follow all local electrical codes and standards for installation.

Keeping these installation and maintenance steps in mind will help you enjoy efficient, reliable heating from your W-type silicon carbide heating element over its service life.

Customization Options for W-Type Silicon Carbide Heating Element



We understand every project is unique, so our W-type silicon carbide heating elements come with flexible customization options. Whether you need specific dimensions, electrical ratings, or coatings, we can tailor your heating element to fit your exact needs.

Options we offer include:

Custom sizes and shapes beyond standard W-shaped SiC heating rods
Varied electrical properties to match your system’s voltage and wattage requirements
Special coatings for added oxidation resistance or extended lifespan
Different connection types suitable for three-phase silicon carbide heaters or single-phase setups

Lead times and ordering

Because these are precision components, most custom orders take between 3 to 6 weeks depending on complexity and volume. We recommend reaching out early to discuss your specifications and ensure timely delivery.

If you need guidance on the best configuration or want a quote for a custom W-type heating element, just contact our team. We aim to make the process straightforward and tailored for your industrial or manufacturing needs.

Pricing and Availability

At Gotrays, our W-type Silicon Carbide Heating Elements come with transparent, tiered pricing to fit projects big and small. Whether you need a single W-shaped SiC heating rod or bulk orders for industrial use, we offer competitive rates to keep your costs down.

Stock Status

• Most W-type SiC heating elements are ready to ship from our U.S. warehouses.
• Custom versions may require additional lead time, typically 2-4 weeks.
• We keep inventory on popular sizes like the three-phase silicon carbide heater rods to avoid delays.

Global Shipping

• We ship nationwide across the U.S., with fast delivery options.
• International shipping is available for customers outside the States.
• Get reliable tracking and support from order to delivery.

Get a Quote

• Use our easy online quote form to get pricing tailored to your specs.
• Bulk order discounts available—perfect if you’re stocking float glass furnace heating elements or industrial SiC heaters for ceramics.
• Contact our sales team for help finding the right W-type silicon carbide heating element that fits your needs and budget.

Buying from Gotrays means you get quality, availability, and pricing built for your schedule and size requirements—no surprises, just reliable heating solutions.

Related Products and Accessories

To get the most out of your W-type silicon carbide heating element, consider these related products and accessories:

• W-shaped SiC heating rods

  Perfect for expanding your heating setup or for replacements, these rods match our W-type elements in durability and performance.

• Three-phase silicon carbide heaters

  Ideal if your operation requires higher power throughput or specialized heating configurations.

• Float glass furnace heating elements

  Designed to work alongside your W-type elements in glass processing applications, improving overall efficiency.

• Custom W-type heating element assemblies

  Bundled options with wiring harnesses and protective fittings for quick installation and reliable operation.

• Oxidation-resistant silicon carbide tubes

  Extend the lifespan of your heating system by protecting elements in high-oxygen environments.

• Industrial SiC heater accessories

  Including mounting brackets, insulators, and connectors engineered for easy setup and maintenance.

These accessories and related products help you build or upgrade a heating system that’s tailored to your specific industrial needs, saving you time and reducing downtime. Explore our bundles for cost-effective solutions, designed to work seamlessly with your W-type silicon carbide heating element.

Customer Support and Resources

We’re here to make sure your W-type Silicon Carbide Heating Element works flawlessly. Got questions? Check out our FAQs section where we’ve answered the most common technical and usage inquiries to get you up and running fast.

Need product manuals, installation guides, or performance datasheets? Download all the important documents right from our resource library anytime.

If you want personalized help, our expert support team is just a call or email away. We provide quick, reliable answers tailored to your specific application or troubleshooting needs.

Contact options:

• Phone support Monday through Friday, 8 am to 6 pm EST
• Email support with response within 24 hours
• Live chat available on business days for real-time assistance

Using these resources and support tools ensures you get the most out of your W-shaped SiC heating rod with minimal downtime and maximum efficiency.

Why Choose Gotrays W-Type Silicon Carbide Heating Elements

Choosing Gotrays W-Type Silicon Carbide Heating Elements means getting a reliable, high-performance heating solution made for U.S. industrial needs. Here’s why our W-shaped SiC heating rods stand out:

• Long-lasting durability — Built from quality recrystallized alpha SiC, our elements resist oxidation and aging, delivering a longer service life.
• Efficient heating — The unique W-configuration ensures even heat distribution and quick temperature ramp-up, saving energy and cutting costs.
• Customizable to your needs — We offer tailored specs and coatings to match your exact application, whether it’s float glass furnaces or ceramic kilns.
• Easy installation and low maintenance — Clear guides and support make setup quick, so you spend less time downtime and more on production.
• Trusted by U.S. industries — From industrial ceramic heaters to three-phase SiC systems, we meet demanding standards and certified performance.
• Competitive pricing with transparent quotes — Get tiered pricing and volume discounts, plus fast domestic and global shipping.

Explore our other heating solutions and accessories designed to complement the W-Type SiC elements on our Related Products page. Need help? Visit our Customer Support section for FAQs, downloads, and contact options.

Choose Gotrays for a heating element that delivers consistent, efficient performance every day.

Key Specifications and Performance Data

Here’s a quick look at the essential specs and performance details for our W-type Silicon Carbide Heating Element, so you know exactly what you’re getting.

Specification	Details
Material	Recrystallized Alpha Silicon Carbide (SiC)
Shape	W-shaped SiC heating rod
Operating Temperature	Up to 1650°F (900°C)
Electrical Resistance	10-30 ohms (varies by size)
Power Rating	500-3000 watts
Dimensions	Custom lengths from 12 to 48 inches
Lifespan	10,000+ hours under optimal use
Oxidation Resistance	Excellent, suitable for harsh environments
Certifications	UL and CE approved

Performance Overview

• Durability: Designed to handle high wear and oxidation with minimal degradation over time.
• Efficiency: Fast heat-up times with consistent temperature distribution thanks to the unique W configuration.
• Aging Management: Aging is minimal but can be further reduced through proper installation and maintenance practices.

Graph Insights

Our lab tests show steady performance across typical industrial heating cycles:

• Power Stability: The heating element maintains stable wattage output over 8,000+ hours.
• Resistance Growth: Slight increase in resistance over time indicating normal aging but stays within safe operating limits.
• Temperature Uniformity: The W-type design ensures even heat spread, reducing hotspots and extending element life.

Ready to Upgrade Your Heating System?

Get in touch today to request a sample or a custom quote tailored to your specific needs. Our team can help you choose the right size and specs to optimize your industrial or glass furnace operations.

Ideal Applications for W-Type Silicon Carbide Elements

W-Type Silicon Carbide heating elements are built for tough, high-temp jobs. Here are the main ways our customers in the U.S. use them:

1. Float Glass Furnaces

   Perfect for consistent, high heat in float glass production, these W-shaped SiC heating rods hold up under long run times and harsh conditions.

2. Ceramics Kilns

   Industrial SiC heaters deliver even heat for firing ceramics, ensuring quality and reducing downtime.

3. Heat Treating Ovens

   Used in metal and alloy heat treating, they provide reliable, oxidation-resistant performance.

4. Semiconductor Manufacturing

   High-temperature SiC rods handle precise thermal processes without degrading, which is critical in semiconductor fabs.

5. Chemical Processing

   Their durability in corrosive environments makes them a solid choice for chemical reactor heating.

Local Success Story

A Midwest glassworks company switched to Gotrays W-type silicon carbide elements for their float glass furnace. They saw a 20% boost in energy efficiency and longer element life within six months — cutting maintenance costs and downtime.

(Images: Float glass furnace in operation, close-up of W-shaped SiC elements, ceramic kiln using W-type heaters)

Features That Set Gotrays W-Type Apart

Gotrays W-type Silicon Carbide Heating Elements stand out for their blend of durability, efficiency, and customization. Here’s why they’re a smart choice for your high-temp heating needs:

• W-Shape Design: Optimizes heat distribution and fits perfectly in float glass furnaces and industrial setups.
• High Durability: Made from recrystallized alpha SiC for excellent thermal shock resistance and a longer lifespan.
• Oxidation Resistance: Handles tough environments without quick wear, outperforming many MoSi2 alternatives.
• Energy Efficient: Delivers consistent heat with less power, reducing operating costs.
• Versatile Use: Perfect for ceramics, glass, and other industrial heating applications.
• Customization Available: Sizes, coatings, and electrical specs tailored to your project requirements.
• US-Based Support: Quick shipping and support tailored to American customers.

Gotrays W-Type vs Competitors

Feature	Gotrays W-Type SiC Element	Standard MoSi2 Heater	Generic SiC Heater
Lifespan	30%+ longer	Moderate	Variable
Thermal Shock Resistance	Excellent	Good	Fair
Energy Efficiency	High	Moderate	Moderate
Customization Options	Extensive	Limited	Limited
Oxidation Resistance	Superior	Moderate	Moderate
Warranty and Support	US-based with fast response	Varies	Varies

Choose Gotrays W-type for proven performance and reliable service that fits local U.S. industry demands.

Installation Guide for Quick Setup

Getting your W-type Silicon Carbide Heating Element up and running is straightforward when you follow these steps:

1. Prepare the Site

   Ensure the furnace or heating chamber is clean and free of debris. Check that mounting brackets or supports are securely in place.

2. Inspect the Heating Element

   Before installation, inspect the SiC heating rod for any cracks or damage. Handle carefully to avoid chipping.

3. Mount the W-type Element

   Position the heater in the designated slots or supports. The W-shape should align properly for even heat distribution. Secure the element firmly but avoid over-tightening.

4. Connect Electrical Wiring

   Use the correct three-phase wiring setup for your SiC element. Follow the wiring diagram provided by Gotrays or your system manufacturer. Make sure all connections are tight and insulated.

5. Initial Startup

   Power the unit gradually to avoid thermal shock. Increase temperature slowly over 30-60 minutes until reaching operating level.

6. Monitor Performance

   Check the element for uniform heating and signs of overheating or unusual noise. Confirm electrical readings meet specs.

7. Troubleshoot Common Issues

   No heat or uneven heat: Verify wiring, check element position.
   Element cracks: Avoid rapid temperature changes in future startups.
   Excessive power draw: Inspect for shorts or incorrect voltage.

   Safety Tips

   Always wear heat-resistant gloves.
   Turn off power before making adjustments.
   Follow OSHA electrical safety standards.

   FAQ Accordion
   Q: Can I install this myself or hire a pro?

   A: If you have basic electrical and furnace experience, you can do it yourself. For complex setups, hiring a licensed electrician or technician is best.

   Q: How do I avoid damaging the element during installation?

   A: Handle the silicon carbide rod gently and avoid dropping or bending it. Use recommended mounting tools.

   Q: How long does the installation typically take?

   A: Most setups take 1-2 hours depending on system complexity.

   Q: What if the element doesn’t heat evenly?

   A: Double-check wiring and mounting alignment. Uneven contact can cause hotspots.

   Q: How often should I inspect the element?

   A: Regular visual inspections are recommended every 3-6 months during operation.

   By sticking to these steps and tips, your W-type SiC heating element will deliver reliable, efficient heat for years.

   Customization and Sizing Options from Gotrays

   At Gotrays, we know every project is different. That’s why our W-type Silicon Carbide Heating Elements come with flexible customization and sizing options to fit your exact needs. Whether you require a special length, diameter, or specific electrical ratings, we can tailor your SiC heating rods to match your equipment perfectly.

   What You Can Customize

   • Element dimensions: Lengths, thickness, and W-shape configurations to fit your setup
   • Electrical specs: Voltage, wattage, and resistance to meet your power requirements
   • Coatings and finishes: Options for added oxidation resistance or improved lifespan
   • Leads and connectors: Different lead lengths and termination styles available

   Bulk Orders and Pricing

   We offer attractive bulk pricing for larger orders and recurring projects. Ordering in volume? You’ll get faster lead times, dedicated support, and cost savings that make your investment worthwhile.

   Easy Order Process

   To get started, use our embedded customization form to submit your specifications. Our team will handle the rest, providing a custom quote and production timeline tailored just for you.

   • Quick turnaround for prototypes and bulk requests
   • Expert advice on sizing and specs for optimal performance
   • Support throughout the ordering, shipping, and installation process

   Contact Gotrays today to make sure your W-shaped SiC heating rod fits your exact needs without hassle or delay.

   Pricing Shipping and Why Buy from Gotrays

   At Gotrays, we keep pricing transparent and straightforward for our W-type Silicon Carbide Heating Elements. Whether you need a single piece or a bulk order, our tiered pricing ensures you get the best value for your investment. We offer competitive rates designed specifically for U.S. industrial users, with no hidden fees or surprise costs.

   Shipping and Availability

   • Fast shipping across the United States with reliable carriers
   • Real-time stock updates so you know what’s ready to ship
   • Options for rush delivery if your project timeline is tight

   Why Choose Gotrays

   • Trusted by American industries for consistent quality and performance
   • Proven durability that saves you downtime and replacement costs
   • Expert support team ready to help before, during, and after your purchase

   Here’s what some of our customers say:

   “Gotrays delivered exactly what we needed on time, and their W-type SiC rods lasted longer than expected. Highly recommend for any industrial furnace setup.” – Midwest Glassworks

   “The pricing was fair, shipping fast, and the support team was great at answering my questions. Will buy again.” – Texas Ceramics Plant

   Ready to order or get a custom quote? Contact us today and experience why Gotrays is the top choice for W-shaped SiC heating rods in the U.S. industrial market.

   Frequently Asked Questions FAQs

   What is a W-type Silicon Carbide Heating Element?

   A W-type silicon carbide heating element is a high-temperature, W-shaped heating rod used mainly in industrial furnaces, like those for float glass and ceramics. Its shape boosts durability and heating efficiency.

   How long does the SiC heating element last?

   The lifespan depends on usage and maintenance but typically ranges between 8,000 to 12,000 hours. Proper installation and avoiding rapid temperature changes help extend its service life.

   Can the W-shaped SiC heater handle three-phase power?

   Yes, many W-type SiC heating rods are designed for three-phase electrical systems, offering stable and efficient heating performance.

   Is it resistant to oxidation and high temperatures?

   Absolutely, the recrystallized alpha silicon carbide material resists oxidation and handles temperatures up to about 1600°C, making it suitable for tough industrial environments.

   How do I install this heating element?

   Installation involves mounting the element carefully in the furnace, proper wiring to the power source, and following safety guidelines to avoid damage. Our detailed installation guide covers this step-by-step.

   Are custom sizes or coatings available?

   Yes, we offer custom W-type heating elements with tailored dimensions and special coatings to meet unique industrial requirements. Lead times vary based on specs.

   How do I troubleshoot common issues?

   Check wiring connections first, ensure no physical damage, monitor temperature controls, and avoid overheating. Our troubleshooting section and customer support can help further.

   Where can I buy Gotrays W-type SiC heating elements?

   You can order directly from Gotrays online or contact our sales team for quotes, bulk pricing, and shipping details across the United States.

   ---

   For any other questions or technical help, contact our support team or explore the detailed resources and downloads on our website.

   Explore Related Gotrays Products

   Looking for more? Check out our full range of Gotrays heating solutions designed to complement the W-type Silicon Carbide Heating Element. Our product grid makes it easy to find what fits your needs:

   • Three-phase silicon carbide heaters for heavy-duty industrial use
   • Float glass furnace heating elements built for reliable high-temp performance
   • Custom W-type heating elements tailored to your specific requirements
   • Oxidation-resistant silicon carbide tubes to extend element lifespan
   • MoSi2 alternatives with competitive durability and efficiency

   Each product listing includes clear specs, usage tips, and user reviews. Plus, our schema markup ensures fast loading and better search results, making your shopping experience smooth and informed.

   Explore now and find the right Gotrays products to power your operation with confidence.
