Gotrays U-Type Silicon Carbide Heating Element High Temp 1600°C

What is a U-Type Silicon Carbide Heating Element

A U-type silicon carbide heating element is a specialized industrial heater shaped like the letter U, made from high-quality silicon carbide (SiC). Unlike straight rod types, the U-shaped design allows for even heat distribution in compact spaces, making it ideal for various high-temperature applications.

Construction

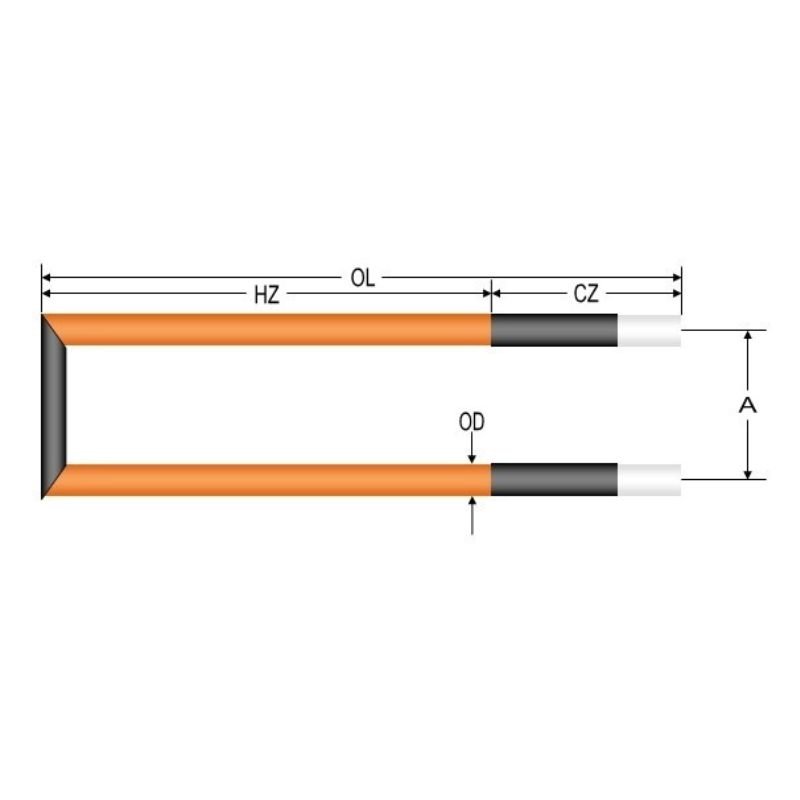

These U-form silicon carbide kiln elements are manufactured from recrystallized SiC, which ensures excellent thermal conductivity and mechanical strength. The element consists of two parallel arms connected by a smooth bend, with metallized cold ends that facilitate reliable electrical connections. This design enhances durability and resistance to thermal shock during intense heating cycles.

Advantages over Rod Types

Compared to traditional silicon carbide rods, U-type elements offer several benefits:

• Better Heat Distribution: The U-shape provides more uniform heating over the work area.
• Space Efficiency: Fits compact furnace designs where straight rods cannot.
• Enhanced Stability: Metallized ends improve electrical contact and reduce resistance fluctuations.
• Durability: Resistant to oxidation and thermal cycling with optional protective coatings.
• Higher Loading Capacity: Supports greater watt density for faster heating cycles.

Overall, a U-shaped SiC heating rod is a robust and efficient choice for demanding industrial environments needing precise, stable, and consistent heat.

Why Choose Gotrays U-Type SiC Heating Elements Key Features

Gotrays U-type silicon carbide heating elements stand out for several reasons that matter most to industries in the US. Here’s why they’re a top choice:

High Max Temperature and Load Capacity

Our U-shaped SiC heating rods handle temperatures up to 1650°C (3000°F) depending on the atmosphere. They support heavy electrical loads, making them reliable for demanding high-temp applications like kiln firing or metal sintering.

Stable Resistance and Metallized Ends

Each element features excellent resistance stability throughout its life, ensuring consistent heat output. The metallized cold ends improve electrical contact and durability, cutting down downtime and maintenance hassles.

Optional Protective Coatings

We offer special coatings to boost oxidation and vapor resistance. This means your SiC heating component keeps working smoothly in tough environments, such as humid or corrosive atmospheres common in US manufacturing.

Energy Savings and Long Lifespan

Thanks to efficient heat transfer and durable materials, our U-form silicon carbide kiln elements save energy and last longer than many alternatives. This lowers your operating costs and replacement frequency.

Compliance and Certifications

Gotrays products meet strict US manufacturing and safety standards, including ISO 9001 material purity certifications. You can rely on consistent quality and performance across every order.

Choosing Gotrays means getting a reliable industrial SiC U-shape heater designed to maximize uptime and performance in America’s toughest settings.

Technical Specifications and Customization Options



Our U-type silicon carbide heating elements come in standard sizes designed to fit most industrial furnaces. Typical dimensions range from small U-shaped SiC heating rods measuring a few inches to larger U-form silicon carbide kiln elements up to several feet long. Resistance values are customizable but generally fall within industry-standard ranges to suit various heating needs.

Maximum loading depends on the atmosphere inside your furnace:

• Air and oxidizing atmospheres: Up to 40 watts per square centimeter
• Non-oxidizing or inert atmospheres: Can handle higher loads, often 50+ watts per square centimeter

We understand every operation has unique requirements. That’s why we offer customization options including:

• Specific lengths and diameters
• Customized resistance values
• Metallized cold-end or single-end designs
• Optional coatings for enhanced oxidation and vapor resistance

To make your order seamless, we have a simple online quote form tailored for custom U-type silicon carbide rods. This helps us provide precise pricing and delivery information.

Need more details? You can download our full spec sheets anytime, giving you complete technical info and performance data needed for your application planning.

Applications in High-Temp Industries

Our U-type silicon carbide heating elements are built to handle the toughest heat jobs across several industries. Here’s where they really shine:

• Ceramics Kiln Firing: Perfect for firing ceramics where consistent, high heat is crucial. The U-shaped SiC heating rod fits well, offering even temperature distribution.
• Metallurgy Powder Sintering: These elements provide reliable heat for sintering metal powders, speeding up production while maintaining quality.
• Glass Melting Tanks: High-temperature SiC furnace elements are ideal for glass melting, handling intense heat without breaking down.
• Electronics Capacitor Annealing: The precise heat control from our U-form silicon carbide kiln elements supports delicate electronics annealing processes.

We also offer local quick-ship options to get your industrial SiC U-shape heater fast, minimizing downtime.

Case study highlights from U.S. manufacturers report ROI improvements with longer element life and energy savings — lowering maintenance costs by up to 20% and cutting energy use by 15%.

If your business operates in high-temp environments, our U-type SiC heating elements deliver the reliability and performance you need.

Installation Guide Easy Setup for U-Shaped SiC Heaters

Getting your U-type silicon carbide heating element installed right is key for safety and peak performance. Here’s how to make it smooth and hassle-free:

Measure Furnace Ports Accurately

• Use a precise tape or caliper to measure your furnace’s ports.
• Ensure the U-shaped SiC heating rod fits snugly without forcing it—this prevents damage.

Secure Elements with Clamps and Braids

• Use high-quality ceramic clamps to hold the SiC heater firmly in place.
• Wrap the element ends with fiberglass braids to protect against movement and vibration.
• Make sure clamps are tight enough to avoid slipping but avoid overtightening that could crack the element.

Test Resistance at High Temperature

• Before full operation, measure the element’s resistance with a reliable ohmmeter.
• Heating it slowly lets you check for stability and any unexpected resistance changes.
• This step confirms the element is working and ready for your process.

Installation Video Tutorial

• For a clear step-by-step walkthrough, check out our online installation video.
• It covers setup tips, safety checks, and troubleshooting in real time, making your job easier.

Maintenance Tips and Recoating Schedule

• Inspect elements regularly for signs of wear or oxidation.
• Apply optional protective coatings every 6 to 12 months depending on your furnace atmosphere.
• Keep clamps and braids in good condition to extend lifespan and avoid downtime.

Following these simple steps sets your U-shaped SiC element up for long, reliable service.

Gotrays Quality Assurance and Warranty

When you choose Gotrays U-type silicon carbide heating elements, you’re getting top quality backed by strong guarantees. All our products meet ISO 9001 standards, ensuring consistent manufacturing and strict quality control. We also use only high-purity materials, so your U-shaped SiC heating rods perform reliably over time.

To give you extra confidence, we offer a 12-month performance warranty. If you encounter any issues during this period, our return policy makes it easy to get support or replacements. This commitment helps minimize downtime and protects your investment.

Our heating elements are trusted worldwide, with a strong client base in the U.S. industrial sectors. Companies rely on our durable industrial SiC U-shape heaters for stable performance in demanding high-temperature environments. That trust reflects our focus on quality and customer satisfaction every step of the way.

Pricing Availability and Bulk Orders

At Gotrays, we understand that every project has unique needs, so our U-type Silicon Carbide Heating Elements come with flexible pricing options.

Dynamic pricing tiers make it easy for you to get competitive rates whether you’re ordering a small batch or placing a bulk order. We offer volume discounts that kick in as your order size grows, helping you save more on large projects.

Our minimum order quantities are designed to be manageable, ensuring you don’t have to buy more than you need. For custom requirements or special configurations, just reach out for a personalized quote. We’ll work closely with you to provide the best price and delivery schedule.

Ready to get started? Use our easy call-to-action buttons to request a quote or download catalogs right from our website.

To help with your budgeting and inventory systems, our product pricing is marked up with schema markup for clear, structured data that search engines recognize — making it smoother when you pull info from our site.

No matter your order size, Gotrays makes it simple and cost-effective to get the high-temp SiC heating elements you need.

Frequently Asked Questions FAQ

What atmospheres are U-type Silicon Carbide heating elements suitable for?

U-shaped SiC heating rods work best in neutral or slightly oxidizing atmospheres. They handle air, nitrogen, and some inert gases well. Avoid strongly reducing or humid environments, as these can shorten the element’s life.

How do I calculate the resistance and loading for my U-type SiC heater?

Calculate resistance by measuring the element’s length and cross-sectional area, then use Ohm’s law with the rated power you need. For loading, keep it within the maximum watts per square inch recommended for your furnace atmosphere — like 20-25 W/in² in air. Following Gotrays’ specs helps avoid overheating.

Can I use U-type SiC heaters in wet or corrosive gases?

Generally, no. Wet or corrosive gases can damage recrystallized SiC heating components quickly. You might need special coatings or protection tubes for those conditions.

How do I maintain resistance stability over time?

Choose metallized cold-end SiC rods with proper coatings to resist oxidation and vapor attack. Also monitor loadings and avoid thermal shocks to keep resistance steady.

Are U-shaped SiC heating elements easy to install and replace?

Yes, installation is straightforward with clamps and braids. Just measure your furnace port sizes correctly, test resistance before powering up, and follow Gotrays’ quick setup guides.

Got more questions? Reach out any time or check our detailed spec sheets and videos for step-by-step answers.

Explore Related Gotrays SiC Heating Solutions

At Gotrays, we offer more than just U-type silicon carbide heating elements. Check out our range of SiC heaters designed to fit different furnace needs:

• W-Type Silicon Carbide Heater: Great for compact spaces and provides even heating distribution.
• Spiral Silicon Carbide Heater: Ideal for tight installations with a higher surface area for faster heat-up.
• SCR Silicon Carbide Heater: Perfect for specialized high-temperature applications needing precise control.

We also stock essential accessories to keep your heating elements in top shape:

• Protection Tubes: Shield your elements from ash, slag, and direct contact with materials.
• Clamps and Supports: Ensure secure installation and prevent movement or damage during operation.

Stay ahead with the latest product news and updates by signing up for our newsletter. Get tips, discounts, and new product launches delivered right to your inbox.

Explore these options to find the perfect heating solution for your high-temp applications with Gotrays.
