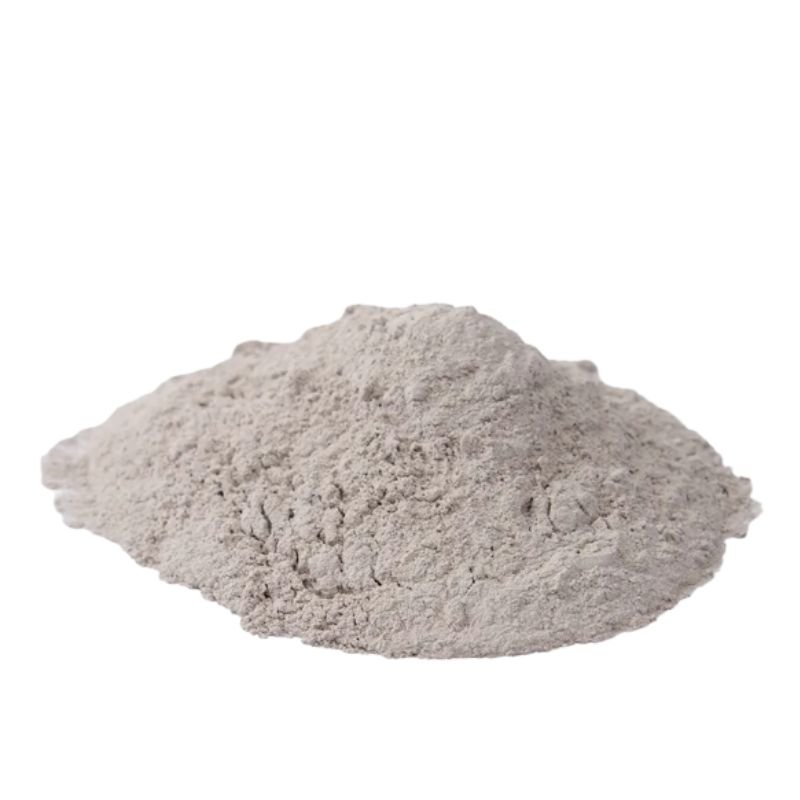

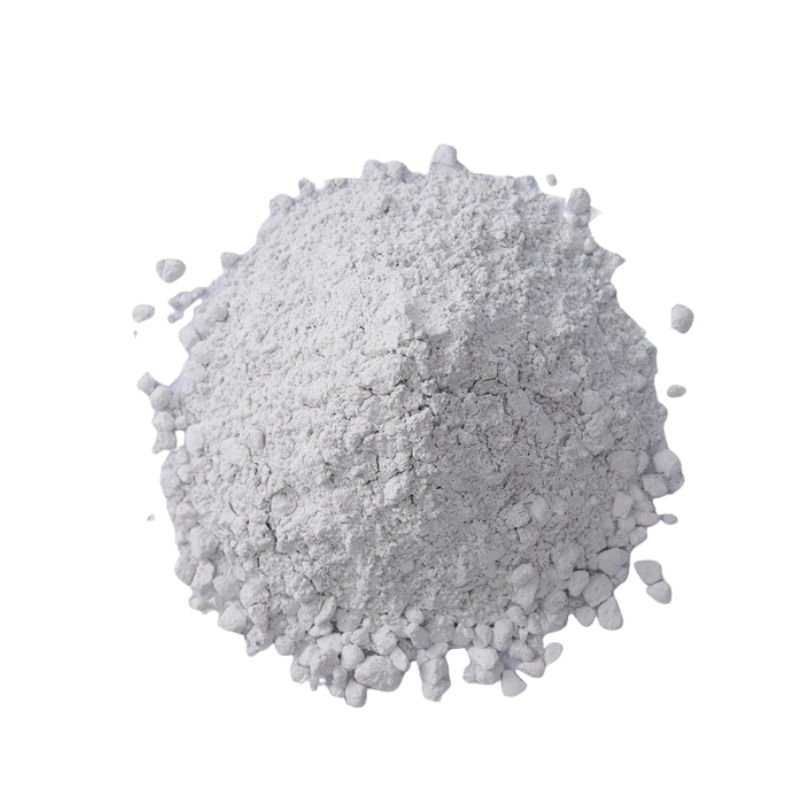

Spinel Castable MgAl2O4 Refractory High Slag Resistance for Steel

What is Spinel Castable MgAl₂O₄ Essential Guide

Spinel castable, primarily made of magnesium aluminate (MgAl₂O₄), is a high-performance refractory material known for its exceptional thermal and chemical stability. It’s widely used in industries that operate at extreme temperatures, such as steelmaking, cement production, and power generation. The term “spinel” refers to the unique crystalline structure of MgAl₂O₄, which offers strong resistance to slag corrosion and thermal shock.

Formation and Types

Spinel castables come in two main types: pre-formed and in-situ spinel.

• Pre-formed Spinel Castable contains MgAl₂O₄ particles already synthesized before mixing. This approach guarantees uniformity and immediate high performance after installation.
• In-Situ Spinel Castable forms spinel during the heating process. It usually starts as a mix of magnesia (MgO) and alumina (Al₂O₃), which react at high temperatures to create the spinel phase inside the lining.

Pros and Cons of Each Type

Type	Advantages	Disadvantages
Pre-formed Spinel	Consistent quality, fast heat-up performance	Higher initial cost
In-Situ Spinel	Lower upfront cost, flexible formulation	Delayed spinel formation, potential expansion

Chemical Structure MgAl₂O₄ Cubic Spinel Explainer

MgAl₂O₄ forms a cubic crystal called a spinel structure, where Mg²⁺ ions occupy tetrahedral sites and Al³⁺ ions occupy octahedral sites in an oxygen framework. This tightly bonded lattice offers excellent mechanical strength, chemical stability, and resistance to slag attack and thermal stress. Its unique crystal geometry makes it an ideal component in refractory castables subjected to harsh industrial conditions.

Spinel castables combine the chemical resilience of alumina and magnesia, resulting in a chrome-free, slag-resistant refractory solution preferred in many US industrial applications.

Technical Specifications of Gotrays Spinel Castable

Gotrays Spinel Castable (MgAl₂O₄) stands out with its reliable and consistent technical specs designed for demanding high-temperature applications. Below is an interactive overview of key properties and test methods you can expect:

Property	Value	Test Method
Bulk Density	2.5 – 2.7 g/cm³	ASTM C642
Refractoriness	Above 3000°F (1650°C)	ASTM C704
Cold Crushing Strength	40 – 60 MPa	ASTM C133
Permanent Linear Change	<0.2% after 24 hours at 1600°C	ASTM C832
Thermal Conductivity	3.5 – 4.0 W/m·K	ASTM C177
Water Demand	4.5 – 5.5% by weight	Internal Test

We tailor Gotrays Spinel Castable grades to your operation’s needs, offering both low-cement and ultra-low cement formulations. The low-cement variety maintains excellent mechanical strength and thermal shock resistance with minimal bonding agents. The ultra-low cement grade reduces slag infiltration and extends castable life in more aggressive environments.

For detailed information, download our full Technical Data Sheet (TDS) PDF — it covers all test results and handling tips so you can be sure Gotrays Spinel Castable fits your exact requirements for refractory solutions.

Key Features and Performance Benefits

Gotrays Spinel Castable (MgAl₂O₄) stands out for its excellent corrosion resistance against basic slags, making it a top choice for steelmaking and other high-temperature industries. Its unique chemistry holds up well where many other refractories fail, protecting your equipment and reducing downtime.

You also get impressive thermal stability. The spinel’s structure handles rapid temperature changes without cracking, so it lasts longer under harsh heat cycles. Plus, it offers strong mechanical strength, with high resistance to abrasion and impact, ensuring durability in demanding environments.

From an environmental perspective, this spinel castable is a chrome-free solution, helping you meet stricter regulations and sustainability goals. It’s also recyclable, contributing to waste reduction and making it a smart choice for eco-conscious operations.

In short, Gotrays Spinel Castable delivers:

• Strong resistance to slag corrosion
• Superior thermal shock resistance
• High mechanical durability
• Eco-friendly chrome-free formulation
• Recyclable material reducing environmental impact

This combination of features brings real value to U.S. industries looking for reliable, high-performance castables that respect both the environment and operational budgets.

Applications in High Temperature Industries



Gotrays Spinel Castable (MgAl₂O₄) is built for tough, high-heat environments where durability matters. Here’s where it shines most:

• Steel Ladles Sidewall and Bottom Linings

  Perfect for slag-resistant ladle lining material, it handles extreme thermal shock and corrosion from molten metal. Many U.S. steelmakers trust spinel bonded refractory mixes to boost ladle life and cut downtime.

• Cement and Lime Kilns Burner Zones

  The castable’s strong resistance to basic slags and thermal stability make it ideal for kiln burner areas battling high temperatures and chemical wear. It helps keep operations smooth and maintenance low.

• Incinerators and Boilers Erosion Areas

  Its erosion resistance takes a hit where aggressive flue gases and ash attack refractory linings. Using Gotrays magnesia alumina spinel castable here extends lifespan and performance.

Case Study Ladle Life Extension at Asian Steel Giant

An Asian steel mill replaced traditional lining with Gotrays pre-formed MgAl₂O₄ spinel castable. The result? Ladle life doubled, maintenance intervals stretched, and costs down by 30%. This isn’t just a local success—it reflects how high-alumina MgO-spinel castable enhances steelmaking globally.

Spinel Castable for Indian Steel Mills Regional Compliance

Indian steel producers benefit too. Gotrays chrome-free spinel castable meets emerging regional environmental standards while delivering the durability Indian mills require. Its low-cement and ultra-low cement grades meet strict sustainability goals without sacrificing strength or heat resistance.

Whether you’re running U.S. operations or exporting spinel refractory technology, this castable works hard where heat and wear hit hardest.

Installation Handling and Best Practices for Spinel Castable

Getting the installation right is key to making sure your Spinel Castable (MgAl₂O₄) performs well and lasts long. Here’s what you need to know about handling, mixing, curing, and solving common issues.

Mixing Ratios and Vibration Techniques

• Follow the recommended water-to-castable ratio closely to avoid weak spots.
• Use clean, cool water to maintain consistent hydration.
• Mix thoroughly until the castable reaches a smooth, lump-free texture.
• Apply vibration during installation to settle the mix and remove air pockets.
• Use mechanical or hand-held vibrators based on the size of the job for best compaction.

Curing Schedule with Temperature Ramp

Proper curing boosts strength and reduces cracking risk:

Day	Temperature (°F)	Notes
1-2	70-95	Maintain moisture, cover
3-5	150-212	Increase heating gradually
6-10	300-480	Monitor for cracking
11+	Up to 1400+	Full service temperature

• Raise temperature slowly to avoid thermal shock.
• Keep the castable damp during early curing to prevent drying shrinkage.

Troubleshooting Hydration Expansion

Hydration expansion can cause cracks or spalling if ignored. Here’s how to avoid it:

• Avoid excessive water during mixing.
• Stick to the specified curing schedule—don’t rush heating.
• Use shrinkage-reducing additives if recommended.
• Inspect the installation regularly during the first week for early signs.

Install Tutorial Video

For step-by-step guidance, check out our Gotrays Spinel Castable installation tutorial video. It covers mixing, placing, vibration, and best curing practices to set your team up for success.

Following these best practices ensures your magnesium aluminate spinel refractory delivers top performance, whether you’re lining ladles, kilns, or boilers.

Why Choose Gotrays Spinel Castable

When it comes to spinel castables, Gotrays stands out for a reason. Our product combines consistent quality with reliable performance built specifically for demanding U.S. industries. Whether you’re lining steel ladles or managing cement kiln burner zones, Gotrays Spinel Castable delivers durability and resistance exactly where you need it.

What Our Clients Say

• Dependable Supply Chain – Customers appreciate our prompt deliveries and steady stock, helping keep their projects on track without delays.
• Proven Performance – Many steel and cement producers report longer service life and less downtime after switching to Gotrays, thanks to its strong corrosion resistance and thermal stability.

Certifications That Matter

Gotrays Spinel Castable meets key quality and safety standards, including:

• ISO 9001 Certified – Ensures consistent manufacturing processes and product reliability every batch.
• REACH Compliant – Confirms our materials meet strict European chemical safety regulations, reflecting our commitment to environmental responsibility.

Competitive Pricing for Bulk Orders

We understand the cost sensitivity in high-temperature industries. That’s why Gotrays offers competitive bulk rates without sacrificing quality. Large volume buyers in the U.S. get the best value and prompt service, making Gotrays your practical choice for magnesium aluminate spinel refractory solutions.

Frequently Asked Questions about Spinel Castable MgAl₂O₄

What is the service temperature of MgAl₂O₄ spinel castable

Gotrays Spinel Castable typically performs well up to around 3000°F (1650°C). This high service temperature makes it perfect for demanding environments like steel ladles and cement kilns where thermal stability is key.

What’s the difference between pre-formed and in-situ spinel

• Pre-formed spinel uses ready-made MgAl₂O₄ aggregates mixed into the castable, offering quick installation and predictable properties.
• In-situ spinel forms during firing by reacting alumina and magnesia components on site, which can enhance bonding but requires precise control for consistent quality.

How does shipping and delivery work

We provide reliable shipping options across the US with flexible bulk orders to meet your project timeline. Gotrays ensures packaged spinel castable arrives safely and on schedule at your site.

Can I use voice search to find product info

Yes, we’ve optimized content so you can easily ask details like “What is spinel castable MgAl₂O₄?” or “Difference between in-situ vs pre-formed spinel” using voice search on your phone or smart device for quick answers.

If you need help beyond this FAQ, reach out via our live chat or contact form anytime.

Related Products and Resources



At Gotrays, we offer more than just Spinel Castable (MgAl₂O₄). Our Alumina-Magnesia Bricks provide excellent thermal shock resistance and durability for steelmaking and other high-temp applications. Complement your refractory needs with our Taphole Clay, designed to improve tap hole life and performance in continuous casting.

Stay ahead in the industry with our Blog Roundup on Top Trends in Spinel Refractories 2025. We cover innovations like chrome-free spinel castables, advances in low-cement mixes, and new insights into in-situ spinel formation. These resources help you make informed choices for your refractory solutions.

Explore our full range of products and insights designed specifically for the demanding U.S. market to boost efficiency and longevity in your high-temperature operations.

Ready to Order Gotrays Spinel Castable

If you’re ready to boost your high-temperature operations with Gotrays Spinel Castable, we’re here to help. Whether you want a custom quote or have questions about our products, reach out anytime.

• Get a Quick Quote: Use our easy online contact form to request pricing and availability.
• Download Our Catalog: Access detailed specs, grades, and applications in one place.
• Talk to an Expert: Have a specific inquiry? Connect directly with our technical team for fast, reliable answers.
• Live Chat Available: For immediate support, hit the live chat button on our site and get real-time help.

Choose Gotrays for quality, performance, and service tailored to the US market. Contact us today and take the next step in upgrading your refractory solutions.
