Gotrays High Performance Corundum Mullite Composite Plates Premium Kiln Furniture for Extreme Temperatures
Experience unmatched durability with Gotrays Corundum Mullite Composite Plates, engineered to withstand kiln temperatures up to 1700°C. Designed to deliver exceptional thermal shock resistance and mechanical strength, these advanced kiln furniture solutions ensure long-lasting performance in demanding sintering and firing processes.
Explore high-resolution images showcasing our plates from every angle, including detailed 360-degree views and cross-sections that reveal the unique corundum-mullite composite structure.
Key Benefits
- Withstands temperatures up to 1700°C
- Superior thermal shock stability prevents cracking
- Available in custom sizes tailored to your kiln requirements
Ready to enhance your kiln’s reliability and efficiency?
[Request a Quote]

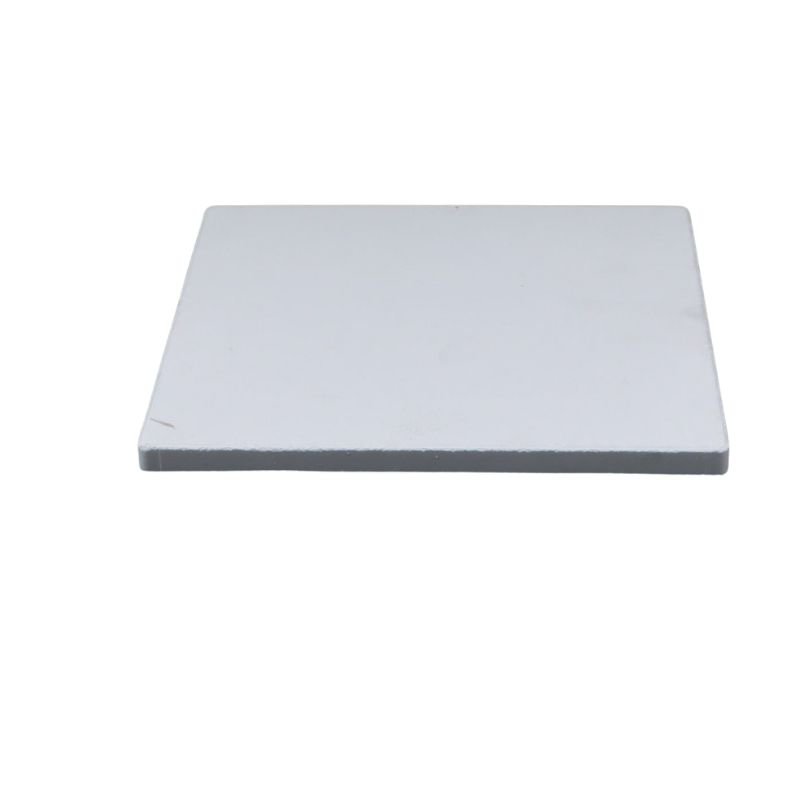

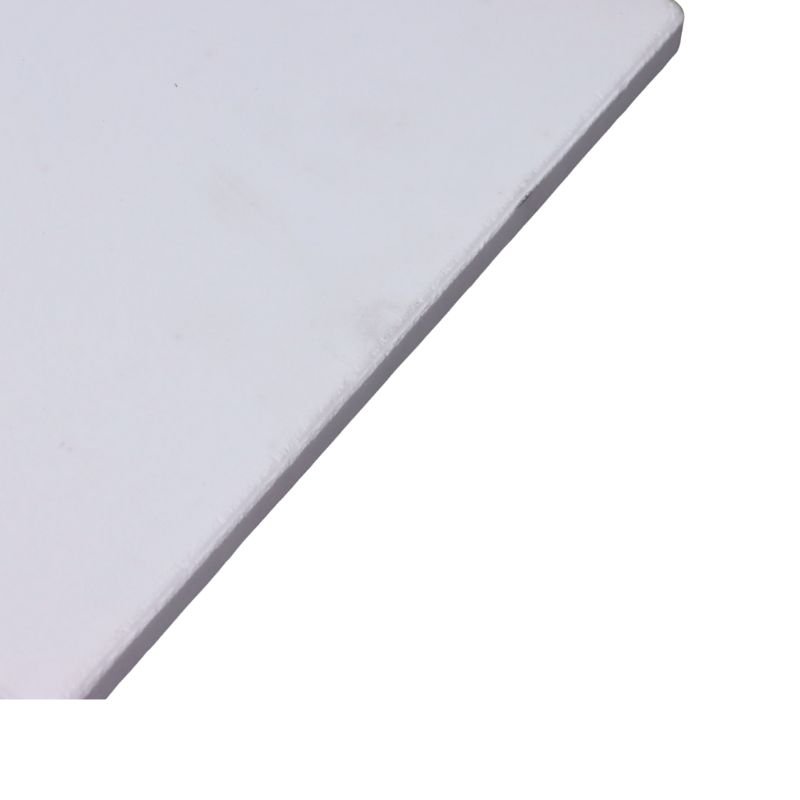

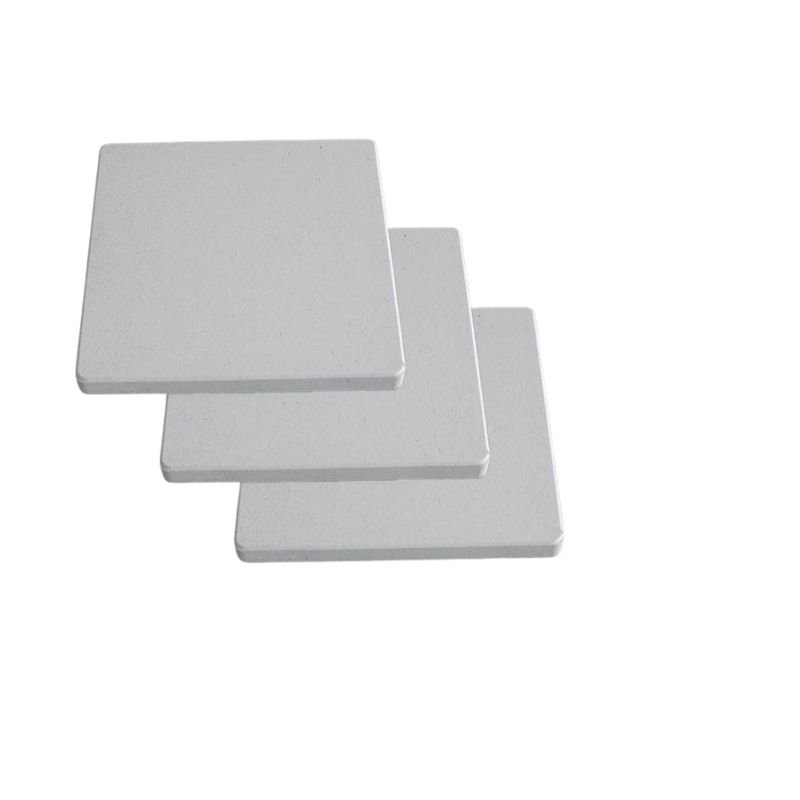

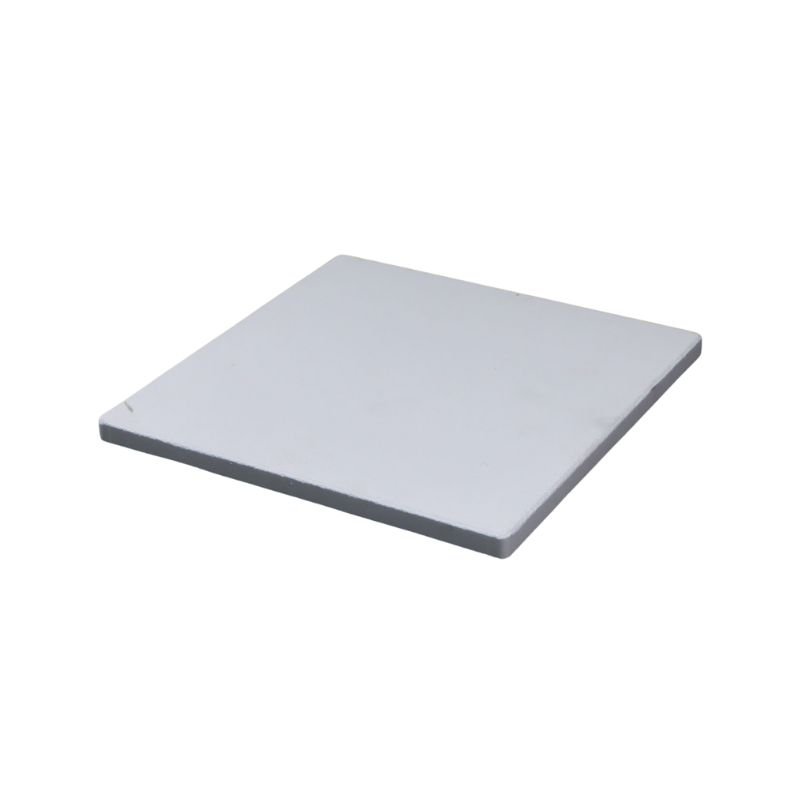

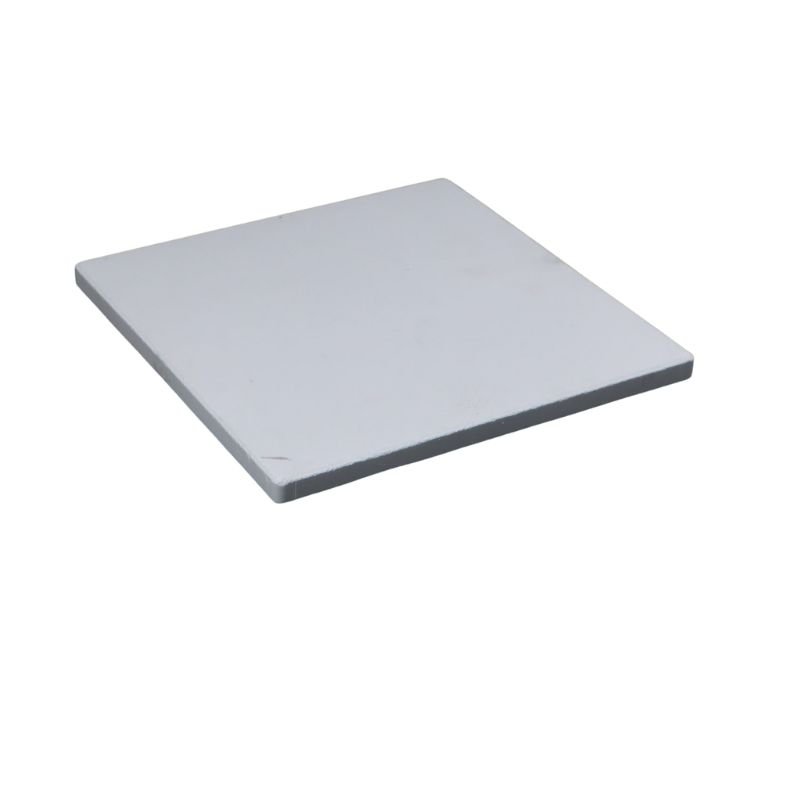

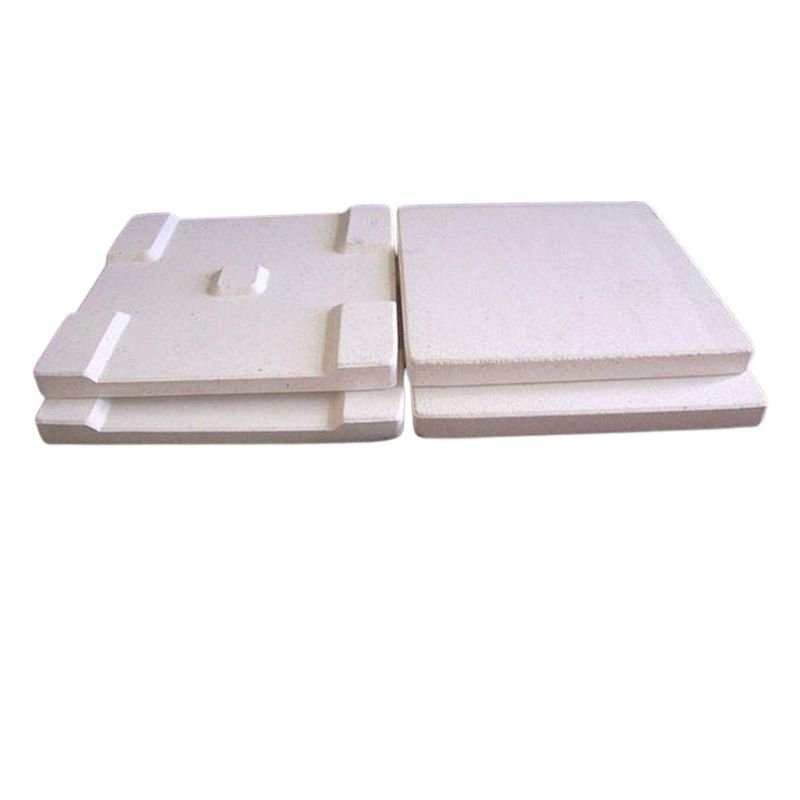

Product Overview
Gotrays Corundum-Mullite Composite Plates offer a reliable refractory solution combining the unmatched hardness of corundum with the thermal resilience of mullite. Designed specifically to support high-temperature sintering processes, these plates deliver consistent performance under extreme conditions, making them ideal for electronics manufacturing and metallurgy applications.
| Specification | Details |
|---|---|
| Material | Corundum-Mullite Composite |
| Maximum Temperature | 1700°C |
| Dimensions (L x W) | Customizable, 100–1000 mm |
| Thickness (T) | 10–50 mm |
| Density | 28–32 g/cm³ |
Crafted by Gotrays with precision and care, these composite plates meet the demanding needs of U.S. electronics fabs and metallurgical plants, ensuring durability and high performance where it counts.
Technical Specifications
Here’s a detailed look at the Gotrays Corundum-Mullite Composite Plate specs designed for tough, high-temp use:
| Property | Value Range | Test Standard |
|---|---|---|
| Composition | 70–80% Al₂O₃, 20–30% SiO₂ | ASTM C357 |
| Refractoriness (℃) | ≥1580 | GB/T 732 |
| Thermal Shock Cycles | Over 20 cycles @ 1100℃ water quench | ASTM C1525 |
| Flexural Strength (MPa) | 20–30 (Room Temp), 15–22 (1400℃) | GB/T 3001 |
| Compressive Strength (MPa) | ≥150 | ASTM C133 |
| Porosity (%) | Less than 18 | GB/T 2997 |
| Bulk Density (g/cm³) | 28–32 | GB/T 2996 |
| Chemical Stability | Inert to acids and bases | ISO 10081 |
We also offer custom formulations for those needing low-creep or ultra-high purity plates to fit specific applications.
Key Features and Benefits
Superior Thermal Shock Resistance
The unique corundum-mullite interface creates tiny microcracks that absorb stress during fast heating and cooling. This microcrack toughening means less cracking and longer life under tough kiln cycles.
High Load-Bearing Strength at Elevated Temperatures
Our composite plates hold strong and stay stable up to 1700°C, making them perfect for heavy-duty ferrite sintering and other demanding applications in electronics and metallurgy.
Chemical Inertness
The material won’t react with glazes, powders, or any firing atmosphere. This ensures your parts stay clean, contamination-free, and consistent batch after batch.
Energy Efficiency
Thanks to low thermal conductivity, Gotrays Corundum-Mullite Composite Plates speed up firing times and reduce kiln energy use by 15–20%, helping you save on costly fuel or electricity.
Durability and Cost Savings
These plates last over 20 times longer than traditional cordierite kiln furniture, cutting down on frequent replacements and downtime—saving you serious time and money.
Visual Comparison
Our plates deliver about 25% better shock resistance compared to pure mullite products, verified through real testing and shown in easy-to-read infographics for quick reference.
Applications
Gotrays Corundum-Mullite Composite Plates are built to handle tough jobs across several industries where high-temperature durability and thermal shock resistance are critical.
-
Electronics
Used as setter plates for MLCC (multi-layer ceramic capacitor) ferrite and magnetic material sintering. Our plates provide stable support that boosts yield and reduces breakage during firing cycles.
-
Metallurgy
Ideal as push plates in roller kilns for powder calcination. The plates maintain strength under continuous thermal cycling, ensuring consistent processing and longer kiln life.
-
Ceramics
Perfect for saggers and batts used in firing architectural and sanitary ware. Their chemical inertness keeps products uncontaminated while handling extreme heat without warping.
-
Petrochemical
Serve as liners in high-temperature reactors where chemical durability and thermal stability are essential for safety and performance.
Case Study Teaser
In a recent project, a ferrite manufacturer switched to Gotrays Corundum-Mullite Plates and saw a 30% boost in output. The improved thermal shock resistance and load-bearing ability reduced downtime and increased kiln throughput — a clear advantage for U.S. electronics fabs demanding reliable kiln furniture.
If you’re facing frequent kiln failures or want to raise production efficiency, Gotrays plates could deliver the edge you need.
Customization and Sizing Options
We know every kiln setup is different, so Gotrays Corundum-Mullite Composite Plates come with flexible sizing and customization options tailored to your needs.
-
Interactive Configurator
Quickly input your required length, width, and thickness to get an instant quote. This makes ordering the perfect fit easy and hassle-free.
-
Standard Sizes Available
Common dimensions include:
• 300 x 300 x 20 mm
• 500 x 400 x 25 mm
But if you need something unique, just ask—we can handle custom sizes up to 1000 mm length and widths between 100–1000 mm. -
Additional Options
You can select edge grinding for a smooth, precise finish. For tough firing environments, we offer plasma-sprayed zirconia coatings that prevent sticking and improve durability.
This flexibility ensures your mullite corundum setter plate fits your kiln perfectly and performs reliably, cutting downtime and boosting yield.
Quality Assurance and Certifications
We stand behind every Gotrays Corundum-Mullite Composite Plate with top-tier quality checks and trusted certifications. Our plates are ISO 9001 certified, ensuring consistent manufacturing standards. They also meet REACH compliance and RoHS requirements, making them safe and reliable for electronics manufacturing in the U.S.
Each plate goes through rigorous in-house testing, including thermal cycling and creep resistance labs, to confirm durability under extreme conditions. We back our products with a 12-month warranty against defects and offer lifetime support to help you optimize your kiln setup. With Gotrays, you get quality you can count on for demanding high-temp applications.
Pricing and Purchasing
We offer tiered pricing to fit your project size:
- $5–$15 per piece depending on volume
- Minimum order quantity (MOQ) starts at 50 plates
- Bulk discounts available for 1,000+ units
Our Corundum-Mullite Composite Plates ship globally by sea or air, with lead times typically between 4 to 6 weeks depending on your location.
Ready to improve your kiln performance?
- Buy Now for quick processing
- Download Spec Sheet PDF to review details
- Contact Sales for custom quotes and bulk orders
Related Products and Upsells
Explore our range of Gotrays Corundum Mullite products designed to complement your kiln setup:
- Corundum Mullite Saggers: Perfect for heavy-duty sintering with excellent thermal shock resistance.
- Zirconia-Coated Variants: Added anti-stick and wear protection for longer life in high-glaze applications.
- Mullite Columns: Reliable supports for evenly distributed heat and structural stability.
FAQ How to select plate thickness for my kiln
Choosing the right thickness depends on your kiln’s operating temperature and load:
- Higher temps (above 1500°C): Go for thicker plates (25–50mm) for better durability.
- Heavier loads or push plates: Opt for 30mm or more to prevent bending.
- Lighter firing or setters: Plates around 10–20mm usually work well.
Need help? Contact us for a quick custom recommendation tailored for your kiln setup.
Gotrays Corundum Mullite Composite Plates Engineered for High Temp Reliability
If your kiln downtime is costing you, cracked plates might be the cause. Gotrays Corundum Mullite Composite Plates are built to handle extreme heat without breaking down, keeping your production running smooth. Designed for maximum durability, these plates combine corundum’s hardness with mullite’s thermal stability to outperform traditional kiln furniture.
Perfect for electronics fabs and metalworks across the US and EU, our composite plates deliver up to 1700°C resistance and resist thermal shock better than pure mullite or alumina options. When you need reliable, long-lasting setter plates or push boards for sintering and firing, Gotrays has you covered.
What Makes Corundum Mullite Composites Superior
When you’re dealing with extreme kiln temps, the material inside really matters. Gotrays Corundum Mullite Composite Plates combine the best of both worlds — the rock-solid hardness of corundum and the thermal stability of mullite.
-
Corundum’s Hardness
Corundum is known for its high alumina content (70-80%), giving it excellent wear resistance and durability. This tough crystal structure makes the plate highly resistant to abrasion and mechanical wear, perfect for heavy-duty sintering or pushing.
-
Mullite’s Thermal Stability
Mullite adds thermal shock resistance and stability, thanks to its unique crystal makeup. It handles rapid heating and cooling better than pure alumina, preventing cracks and warping during quick temperature changes.
-
Toughening through Microcracks
One of the key benefits of the composite is microcrack toughening. The interface between corundum and mullite creates tiny microcracks that absorb stress instead of letting it spread. This means improved shock absorption and longer life under rapid thermal cycles.
Here’s a quick visual comparison showing why Gotrays Corundum Mullite plates outlast standard alumina or cordierite kiln furniture:
| Property | Corundum Mullite Composite | Pure Alumina | Cordierite |
|---|---|---|---|
| Max Temp (°C) | Up to 1700 | 1600 | ~1300 |
| Thermal Shock Cycles | >20 | 10-15 | 5-8 |
| Flexural Strength (MPa) | 20-30 | 15-20 | 10-15 |
| Resistance to Wear | Excellent | Good | Moderate |
Quick Calc for Your Kiln
Match your kiln’s max temp to Gotrays plate specs to get the best fit:
- Up to 1700°C → Gotrays Corundum Mullite is ideal
- Below 1500°C and lower thermal shocks → Mullite or alumina options could work
- Frequent rapid cycles → Choose Corundum Mullite for superior shock resistance
With these plates, US ceramics and electronics manufacturers get reliable, long-lasting kiln furniture that cuts downtime and boosts productivity.
Performance Under Fire Key Properties
Proven Specs for Demanding Applications
Gotrays Corundum-Mullite Composite Plates deliver reliable performance when it counts. Designed for harsh environments, these plates handle extreme conditions without breaking down.
Thermal and Mechanical Data
| Property | Value Range | Test Standard |
|---|---|---|
| Refractoriness | ≥1580°C | GB/T 732 |
| Max Operating Temp | Up to 1700°C | – |
| Thermal Shock Resistance | >20 cycles (1100°C water quench) | ASTM C1525 |
| Flexural Strength | 20 – 30 MPa (RT), 15 – 22 MPa (1400°C) | GB/T 3001 |
| Compressive Strength | ≥150 MPa | ASTM C133 |
| Porosity | <18% | GB/T 2997 |
| Bulk Density | 28-32 g/cm³ | GB/T 2996 |
These specs confirm our plates offer unmatched high refractoriness and strength, perfect for high temp ceramic sagger boards and refractory kiln pusher plates.
Real-World Testing
In practical use, Gotrays plates have shown over 23 thermal shock cycles without damage. That means they stand up to rapid heating and cooling better than standard alumina mullite composite refractory boards.
Customers report consistent reliability under heavy loads at temperatures reaching 1700°C, reducing downtime and costly replacements. This durability is key for US electronics fabs and metallurgy plants needing long-lasting kiln furniture.
With high alumina refractory batt strength and proven thermal shock resistance, Gotrays Corundum-Mullite Composite Plates are ready to meet your most demanding kiln firing needs.
Tailored Applications Across Industries
Where Gotrays Plates Excel
Gotrays Corundum-Mullite Composite Plates deliver top performance across several demanding industries in the US, making them a trusted choice for professionals needing reliable kiln furniture.
Electronics Sintering
Our plates serve as ideal setter and support plates for MLCC and ferrite magnetic material sintering. With excellent thermal shock resistance and chemical inertness, they protect your delicate components while enduring extreme heat cycles without cracking or contaminating your batch.
Metallurgy and Ceramics Firing
In metallurgical processes, Gotrays plates withstand the stress of push plates in roller kilns during powder calcination, maintaining strength above 1700°C. For ceramics, they’re perfect as saggers or batts for firing architectural sanitary ware, offering durability that reduces downtime and replacement costs.
From Prototype to Production A Ferrite Manufacturer’s Switch to Gotrays
A US-based ferrite plant once struggled with repeated kiln downtime due to conventional setter plates cracking under thermal stress. After switching to Gotrays Corundum-Mullite Composite Plates, they saw a 30% increase in output thanks to the plates’ superior resistance to thermal shock and high load-bearing capacity. This transition also cut kiln energy usage by nearly 20%, directly impacting their operational costs and improving overall production consistency.
If you need a proven refractory solution tailored for high-temp, high-demand environments in electronics, metallurgy, or ceramics, Gotrays plates are built to meet your needs reliably.
Customization Building Your Ideal Solution
At Gotrays, we know every kiln setup is different, so we offer bespoke fabrication services to match your exact needs. Whether you’re after a specific size, thickness, or coating, we’ve got you covered.
- Custom sizes from 100 to 1000mm in length and width, with thickness options from 10 to 50mm
- Edge grinding for precise fits
- Optional plasma-sprayed zirconia coatings to prevent sticking and extend plate life
Our interactive size configurator lets you input your dimensions and get an instant quote — no waiting, just fast answers. Plus, we keep local stock right here in the US, so you benefit from quick turnaround times and easier delivery.
This customization flexibility ensures your Gotrays Corundum-Mullite Composite Plates perform perfectly in your electronics, metallurgy, or ceramics kiln.
Why Choose Gotrays Quality and Support
When it comes to high-temp kiln furniture, you need reliability you can trust. Gotrays Corundum-Mullite Composite Plates deliver unmatched performance backed by years of expertise in refractory solutions. Our products meet strict quality standards, so you can count on consistency and durability every time.
We hold ISO 9001 certification, and our plates are fully REACH and RoHS compliant, making them safe for use in electronics and other sensitive industries across the US. Our commitment to sustainability means our manufacturing processes minimize environmental impact while helping your kiln run more energy-efficiently — lowering firing costs without sacrificing strength or longevity.
Every Gotrays plate undergoes rigorous in-house testing for thermal shock resistance, creep, and mechanical strength. Plus, we stand behind our products with a 12-month warranty and lifetime application support to ensure you get the most from your investment.
Ready to see how Gotrays can improve your kiln’s uptime and efficiency? Schedule a free application audit with our experts today and get the custom support you need for your next project.
Elevate Your Kiln Performance with Gotrays Today
If you’re serious about uptime and performance, Gotrays Corundum-Mullite Composite Plates are the smart choice for your kiln furniture needs. Designed to handle extreme temperatures up to 1700°C while resisting thermal shock, these plates keep your production running smooth without costly stops. That means fewer replacements, less downtime, and better quality control—all tailored to meet the demands of U.S. electronics, metallurgy, and ceramics industries.
Here’s why Gotrays plates stand out:
- Unmatched thermal shock resistance for fewer cracks and longer life
- High load-bearing strength to support heavy sintering loads
- Custom sizing and coatings that fit your exact process needs
- Energy-efficient design cuts firing costs by up to 20%
- Certified quality and local support for peace of mind
Ready to boost your kiln’s reliability and cut maintenance headaches? Request your custom quote now and see how Gotrays can transform your firing process.
Related Reads
- Top 5 Refractory Trends for 2025
- How to Choose the Right Kiln Furniture for High-Temperature Sintering
- Energy Saving Tips for Industrial Kilns
- Corundum vs Mullite: Which Setter Plate Fits Your Needs?
- The Benefits of Zirconia Coated Kiln Boards
